4 Digit DIY Digital Clock Kit
4 Digit DIY Digital Clock Kit
Regular price
$24.99
Sale price
$24.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Key Features
- ⏰【DIY 4-Digit Electronic Alarm Clock】：Solder your own 4-digit electronic clock that displays time, date, weekday, and temperature. Once completed, it functions as a practical desktop alarm clock with a bright green LED display, making it both a rewarding soldering project and a useful electronic device for everyday use.
- ⏰【Soldering Learning Kit】：Designed for electronics hobbyists, makers, and DIY enthusiasts, this circuit board assembly kit provides practical experience with electronic components, circuit assembly, and soldering techniques. A great soldering practice kit for users looking to improve their hands-on electronics skills.

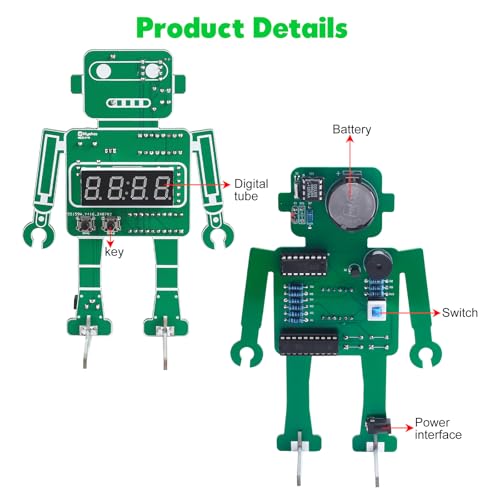

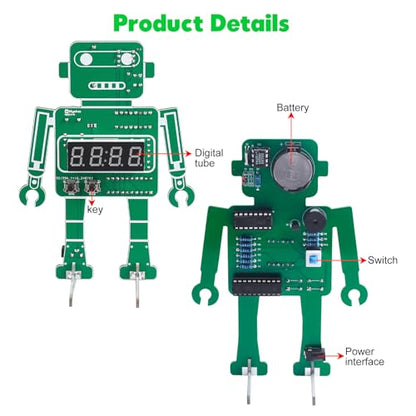

- ⏰【Practical Function】：Equipped with a clear 4-digit green LED display, loud alarm function, and simple button controls for easy setup. The distinctive robot-inspired appearance makes it an eye-catching desktop electronic project while maintaining full alarm clock functionality.
- ⏰【Easy to Solder】：Clearly labeled PCB and components help simplify the assembly process. This circuit board soldering kit is suitable for users with basic electronic knowledge and soldering experience who want to practice circuit assembly and enhance their soldering skills.
- ⏰【Detailed Printed Soldering Manual】：Includes a step-by-step printed instruction manual to guide the complete assembly process. After assembly, the finished project serves as a functional electronic alarm clock and desktop display, making it an enjoyable DIY electronics kit for personal projects or as a thoughtful gift for electronics enthusiasts.
Specifications
| Brand | MiOYOOW |
| Manufacturer | MIOYOOW |
| Model | GY21464-2 |
| Material | Plastic |
| Color | Green |

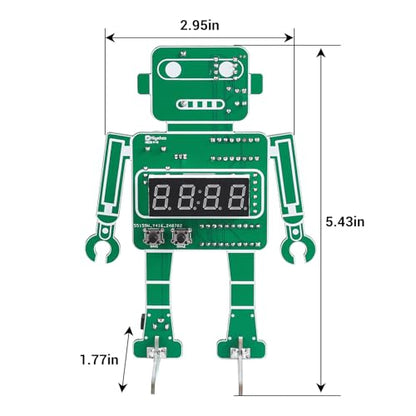

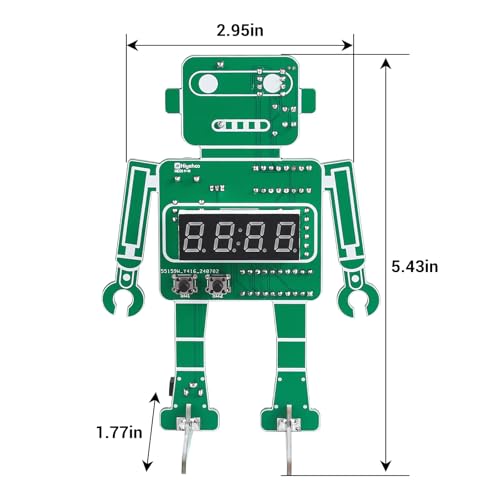

| Size | 3.74 x 5.12 x 0.7 inches |
| Product Type | SCIENCE_FUNDAMENTALS_KIT |

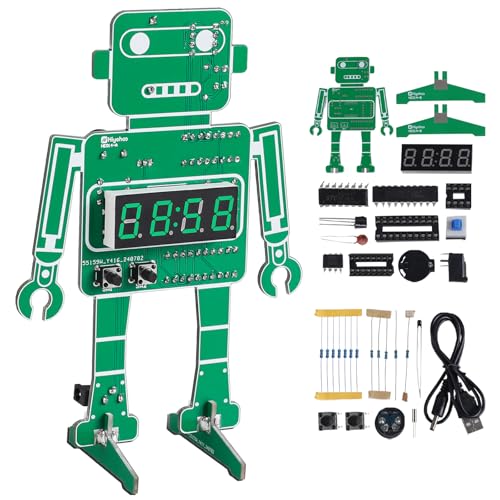

| Included Components | PCB and electronic components |
| Item Highlights | DIY Alarm Clock, Temperature Display, Electronics Soldering Project, Students Circuit Board Soldering Kit for School Learning |
| Item Type Keyword | clock-kits |
| Item Dimensions | H: 18 / L: 130 / W: 95 (Weight: 68) |
| Package Dimensions | H: 19 / L: 172 / W: 124 (Weight: 68) |
| unit |
Description

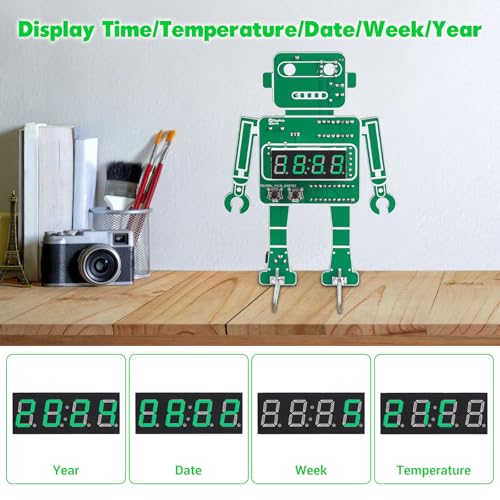

Once soldered, the kit becomes a robot-shaped electronic clock that displays time, year, month, day of the week, temperature. Green digital tube is clear and easy to read. It's not just a soldering exercise kit—it's a practical desktop clock that lets you set alarms and reminders. Key Circuit Principles Used in This Kit 1. Time Base and Oscillation Principle A crystal oscillator (e.g., 32.768 kHz quartz) provides a stable clock signal for the chip’s internal oscillator. Principle: The DS1302 clock chip calculates time internally to generate the second, minute, and hour reference signals. 2. Display Driving Principle The DS1302 time data is read and displayed on 7-segment LEDs, controlled by the MCU. Principle: Multiplexing or dynamic scanning is used, with the MCU controlling the illumination of each segment.
<
