Easy Plug ESP32 Expansion Board
Easy Plug ESP32 Expansion Board
Regular price
$36.99
Sale price
$36.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Key Features

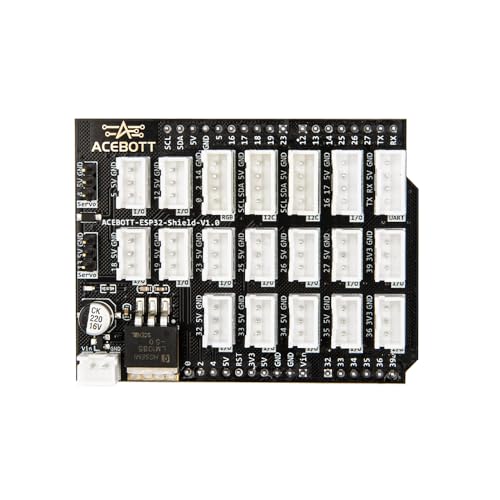

- ACEBOTT-ESP32-Shield-V1.0 is an expansion board for the ESP32-Max-V3.0 controller board. The expansion board uses a standardized connection method, which simplifies the hardware connection process, reduces the user's wiring work, reduces the possibility of errors, and better helps developers improve project development efficiency
- ESP32-IO sensor expansion board size: 68.1mm*52.1mm; weight: 22.1g
- ESP32 expansion board composition description: Eight 3-pin digital pins for connecting 5V sensors/modules Six 3-pin analog pins, four of which are connected to 5V sensors/modules and two are connected to 3.3V sensors/modules One 4-pin digital pin (two signal pins, one power supply, and one GND) One 4-pin digital pin (three signal pins and one GND) Two rows with ESP32-Max-V3.0 pin interfaces Two I2C pins Two servo interfaces One serial port 1 power interface
- It comes fully assembled, no soldering required；1 power interface (maximum input voltage 15V output current 3A); operating temperature 0~70℃
- What You Get: 1 ACEBOTT ESP32 expansion board
Specifications
| Brand | ACEBOTT |
| Manufacturer | ACEBOTT |
| Color | ESP32 Expansion Board |
| Product Type | SINGLE_BOARD_COMPUTER |
| Included Components | ESP32-Shield-V1.0 expansion board |
| Item Type Keyword | single-board-computers |
| Package Dimensions | H: 50 / L: 150 / W: 100 (Weight: 60) |
| unit |
Description
ESP32-Shield-V1.0 expansion board for the ESP32-Max-V3.0 controller board
<
