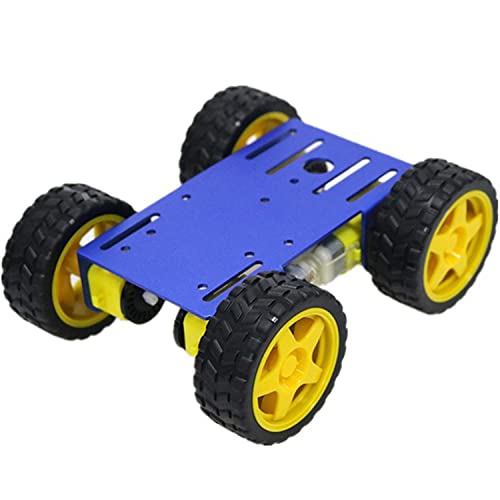

DIY Smart Robot Car Chassis Kit with Speed Encoder TT Motor
DIY Smart Robot Car Chassis Kit with Speed Encoder TT Motor
Regular price
$49.99
Sale price
$49.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Key Features
- AI ROBOT -- AI is the hottest topic right now. Based on this basic robotics platform, you can learn more about artificial intelligence. For example, the chassis of this robot car is controlled by voice, and autonomous driving is realized by installing many sensors. In the documentation, we provide the reference code for arduino project.
- METAL FRAME -- This robot car chassis kit is equipped with a metal frame, similar to acrylic sheet, which is not easy to break. And the panel is sandblasted and oxidized. Note that reserved holes are only considered for arduino, nodemcu and raspberry pi. So maybe some sensors are not suitable for assembly. But there are other ways to install it.
- ROBOT CONTROLLER LEARNING -- Controller is the core of the robotic car. Through this car chassis, you can learn the knowledge of robot controllers, compatible with arduino uno, raspberry pie, microbit, stm32 and many other main control boards. Plus, you'll learn more about things like motor shield board and other sensors.
- 4WD CAR CHASSIS -- Assembling this four drives robot car chassis will help you improve your ability to operate the robot, and at the same time you can enjoy the fun of assembly. You can also understand the mechanical structure on the robot car chassis kit, including the frame, engine motor. The car chassis needs to be assembled according to the manual. If you encounter problems during the assembly process, please contact us for support.
- PACKAGE INCLUDED -- Include 1pc metal platform, 4pcs wheels, 4pcs TT motors with encoder and 1 set screw kit. NOT Contain ANY Battery. Robot car chassis kit is very suitable for adults DIY subjects, interest training. Any question, please feel free to contact us, and we will reply you within 24 hours. This robot chassis is a research and learning kit for adult college students.
Specifications
| Brand | SmaringWing |
| Manufacturer | Smaring |
| Model | C101 |
| Material | Plastic |
| Color | Blue |
| Size | 6.9*5.4*2.6 inch |
| Style | Modern |
| Product Type | SCIENCE_FUNDAMENTALS_KIT |
| Included Components | Car Chassis |
| Item Type Keyword | robot-platforms |
| Item Dimensions | H: 193 / L: 163 / W: 60 |
| Package Dimensions | H: 71 / L: 192 / W: 134 (Weight: 399) |
| unit |
Description

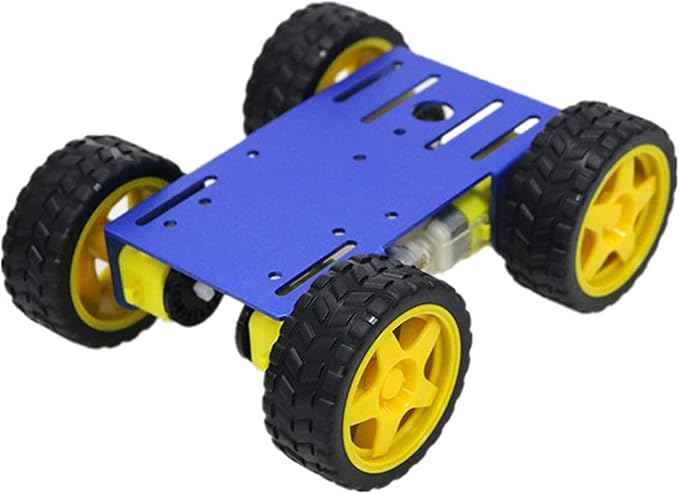

Introduction The C101 4WD Smart Robot Car Chassis Kit is Designed as Robotic Learning Kit for Beginners. With systems and other devices, the car chassis can perform functions of tracing, obstacle avoidance, distance testing, speed testing, or wireless remote control. To make the car move, we need to convert electrical energy into mechanical energy, and finally become the kinetic energy of the car. The kinetic energy of the car is provided by four DC motors, and the motor drive module controls the motor movement. The module is compatible with Arduino uno or other controllers and is responsible for receiving signals to drive the motor movement. Of course, it is indispensable to provide enough power for the drive module. NOT Contain ANY Battery.

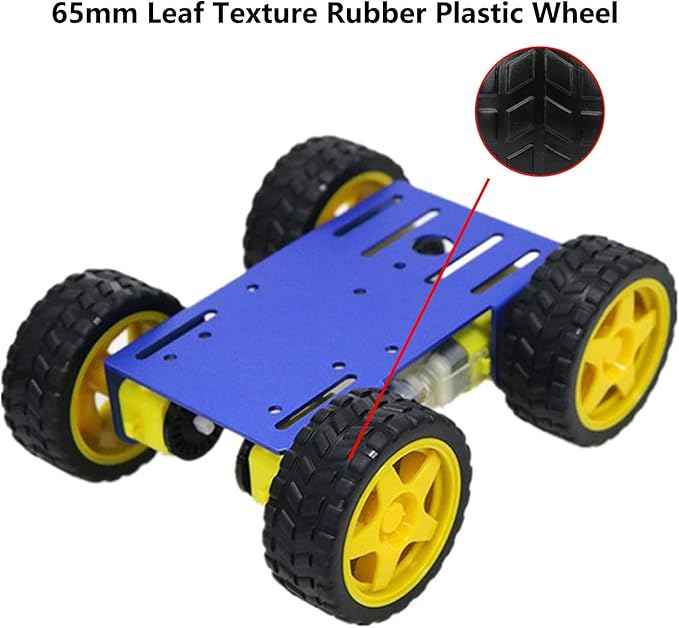

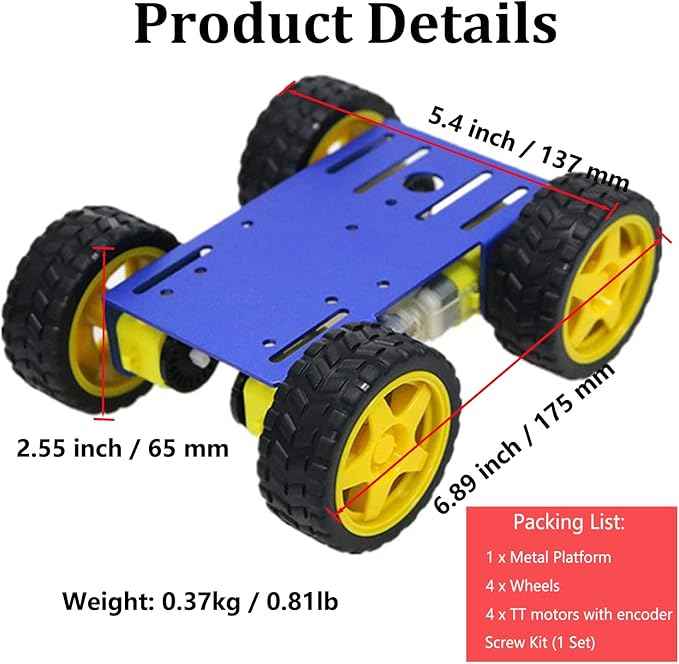

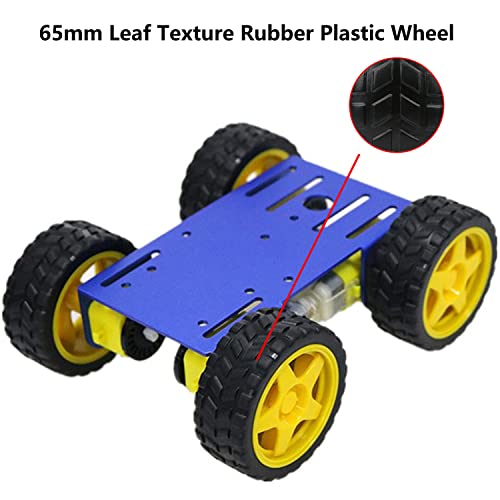

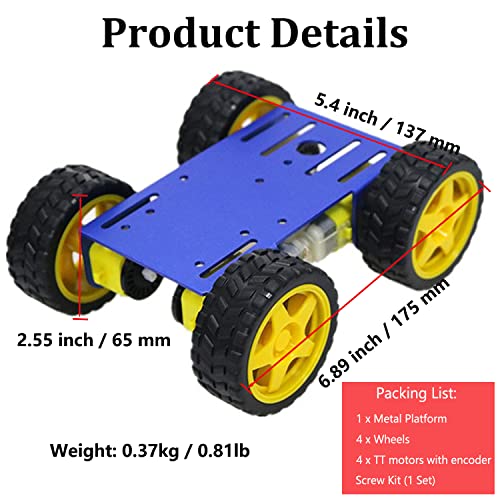

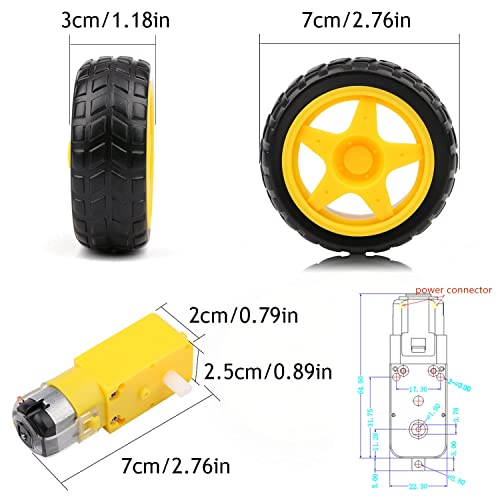

Product Parameters Product Name: C101 4WD Robot Car Chassis Kit Panel Material: 2mm Aluminum Product Size: 6.9*5.4*2.6in/ 175*137*65mm Product Weight: 0.37kg Load Weight: 0-2kg Motor Type: 1:48 reduction ratio TT motor Wheel: 65mm leaf texture rubber plastic wheel Wheel Weight: 41g

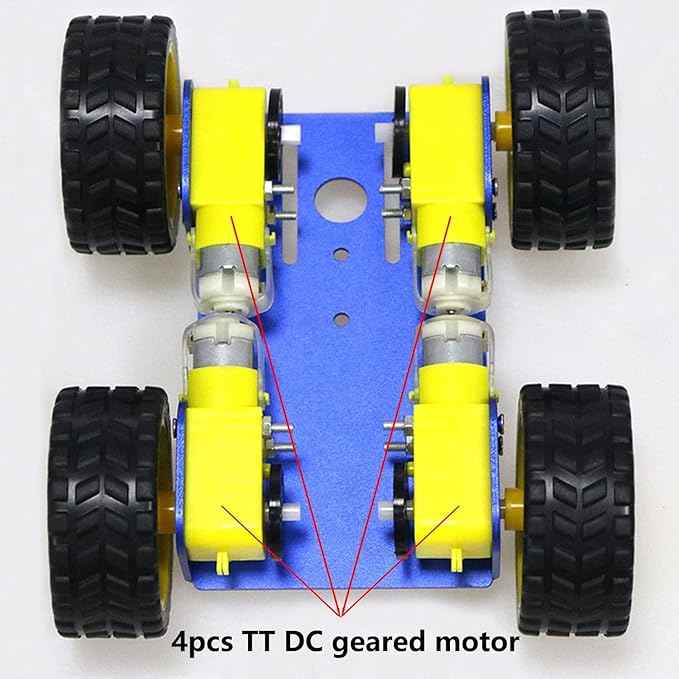

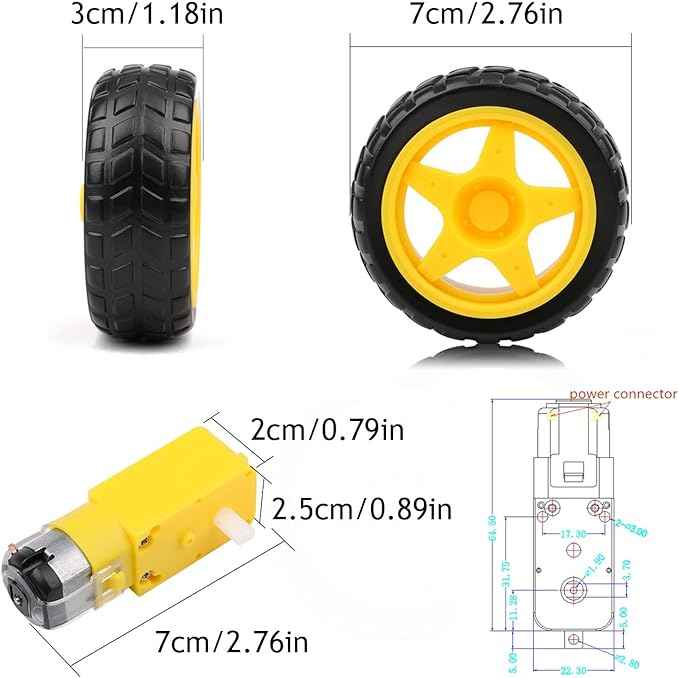

TT Motor Specifications Input Voltage: DC 3-6V (recommended at 3-6V best) Voltage: 6V No-load Current: ≤250mA No-load Speed: 240±10% rpm Voltage: 3V No-load Current: ≤170mA No-load Speed:110±10% rpm Reduction Ratio: 1:48 Motor Weight: 28g

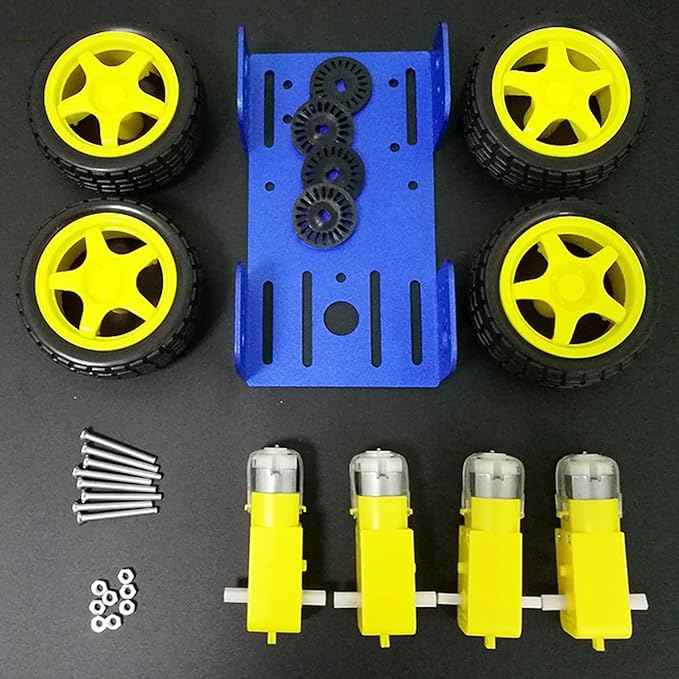

Packing List 1pc Metal Panel 4pcs TT Motor 4pcs Wheels 1set Screw Accessories
PLEASE NOTE In order to facilitate transportation, the product is not assembled. More documents can be downloaded at gitnova.com.
<
