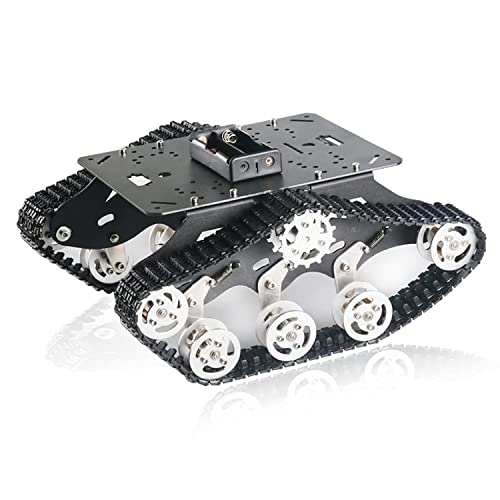

Professional TS300 Shock Absorption Robot Tank Chassis with Suspension Supporting Holder for Arduino Raspberry Pie
Professional TS300 Shock Absorption Robot Tank Chassis with Suspension Supporting Holder for Arduino Raspberry Pie
Regular price
$161.99
Sale price
$161.99
Regular price
Unit price
per
Shipping calculated at checkout.
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
Estimated deliver: Jan23 - Jan26
Free Shipping & Returns: On orders above $79
Key Features

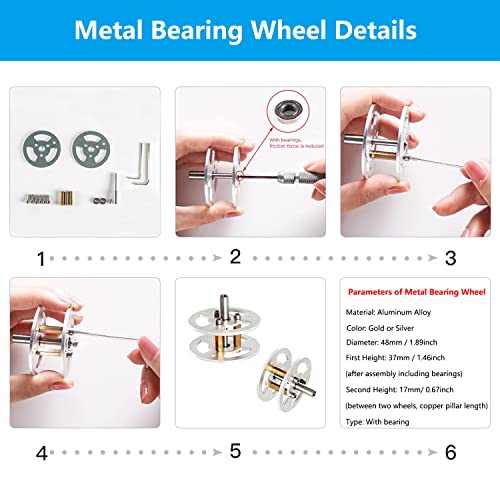

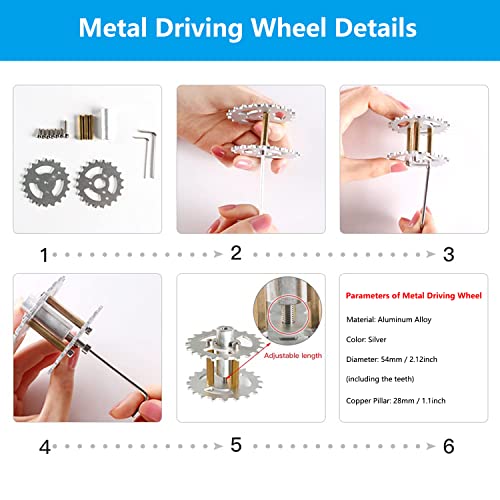

- 【Robot Tank Chassis】: You will get: a set of metal kit including 3 parts, 2pcs engineering plastic tracks, 2pcs high torque encoder DC motor, 2pcs driving wheels, 10pcs bearing wheels and screw kits. Note: It is unassembled for shipping convenience! It is not difficult to install, just need your patience by the help of the manual.
- 【Suspension System Design】: This robot tank car chassis is designed with shock absorption. Thus, this tank chassis can easily avoid some obstacles, e.g., crushed stones. So many people use this robot tank chassis (model: TS300) for VR/AR, video monitor, and other applications.
- 【High Torque DC Motor】: Motor is the core for the tank chassis. 2pcs high torque encoder DC motor is used for this robot tank car chassis TS300. One can get the speed feedback by the Arduino UNO R3 / Raspberry pie / Micro-bit programming.
- 【DIY RC Model】: This smart robot tank car chassis is very suitable for the maker, school students for robot learning, STEAM education, teaching, competition. One can DIY a robotic tank car model by PS2 or Bluetooth. We provide the source code based on Arduino controller kit. This robot chassis is a research and learning kit for adult college students.

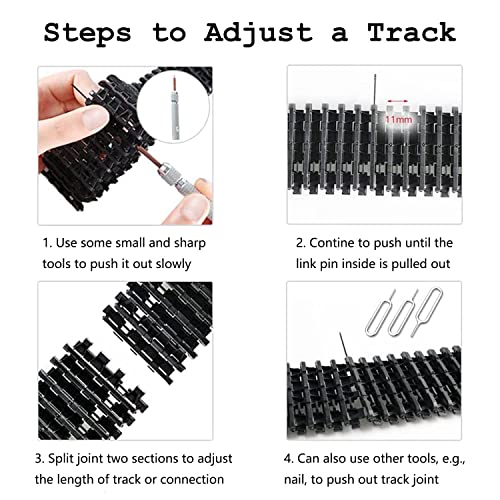

- 【Flexible Design】: This tank car chassis is exquisitely designed.. 1) The length of track can be adjustable by the requirements. Since different people needs different length of track or for the backup. We will provide much tracks. 2) The tank car chassis is metal, and the load wheel is equipped with bearings to reduce the friction.
Specifications
| Brand | Swaytail |
| Manufacturer | szdoit |
| Model | ts300 |
| Material | Plastic |
| Color | Raspberry |
| Style | Professional |
| Product Type | TOY_FIGURE |
| Recommended Uses | STEAM education, robot learning, DIY creations, VR/AR applications, video monitoring, competitions, graduation design, engineering prototypes |
| Special Features | ['Remote Control'] |
| Item Type Keyword | robot-platforms |
| Item Dimensions | H: 111 / L: 269 / W: 258 |
| Package Dimensions | H: 69 / L: 253 / W: 213 (Weight: 1261) |
| unit |
Description
Product Application Competition; Graduation design; The engineering prototype; Robot project; DIY creations

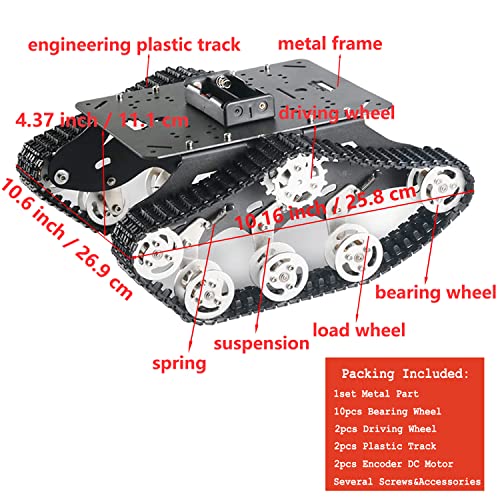

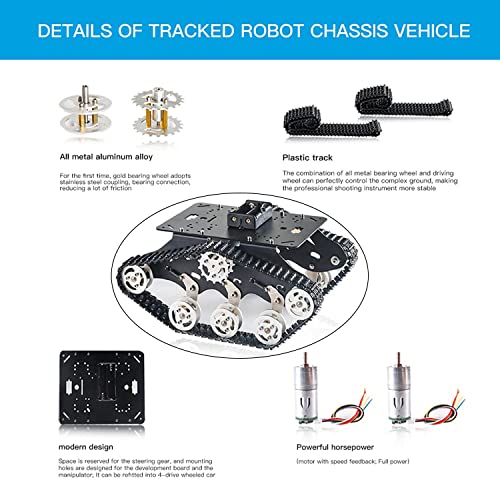

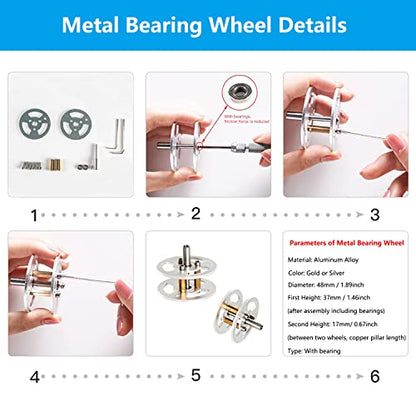

TS300 Tank Chassis Parameters Name: TS300 shock-absorbing tank chassis Material: Aluminum alloy Surface: sandblasted Color: Black Tracks: engineering plastics, Drive wheel: aluminum alloy Weighing wheel: aluminum alloy Track width: 40mm/1.57in Weight: 1.1kg/2.43lb Size: about 269*258*111mm/ 10.6*10.16*4.37 in (length * width * height) Designed load: 8kg/17.64lb Independent shock absorption system

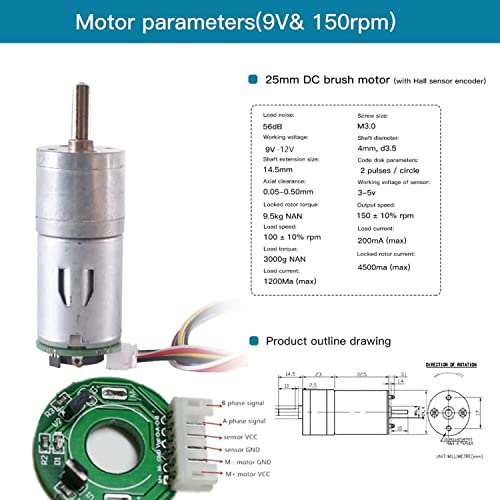

Motor Parameters Name: 25mm gear motor Output speed: 150±10%rpm No_load current: 200mA (Max) Stall current: 4500mA(max) Stall torque: 9.5kgNaN Rated speed: 100±10%rpm Rated torque: 3000gNaN Rated current: 1200mA (Max) Noise: 56dB Working voltage: 9-12V Outside Shaft Length: 14.5mm Shaft End Play: 0.05-0.50mm Screw Size:M3.0 Dia. Of Shaft phi 4mm, D3.5
Encoder Parameters Type: AB-phase incremental Hall encoder Line speed: 150 (measured by reducer output shaft) Supply voltage: 5V Interface type: PH2.0 (standard motor cable)
Shipping List Metal part: 1set Bearing wheel: 10pcs Driving wheel: 2pcs Plastic track: 2pcs Encoder DC motor: 2pcs Screws kit: 1set Others: several
<
