Pacific Arc Pipe Fitting Template Guide, with Pipe O.D., End Bell, Flange, and Fittings

Overview

• Material : Plastic
• Brand : Pacific Arc
• Style : Pipe Fitting

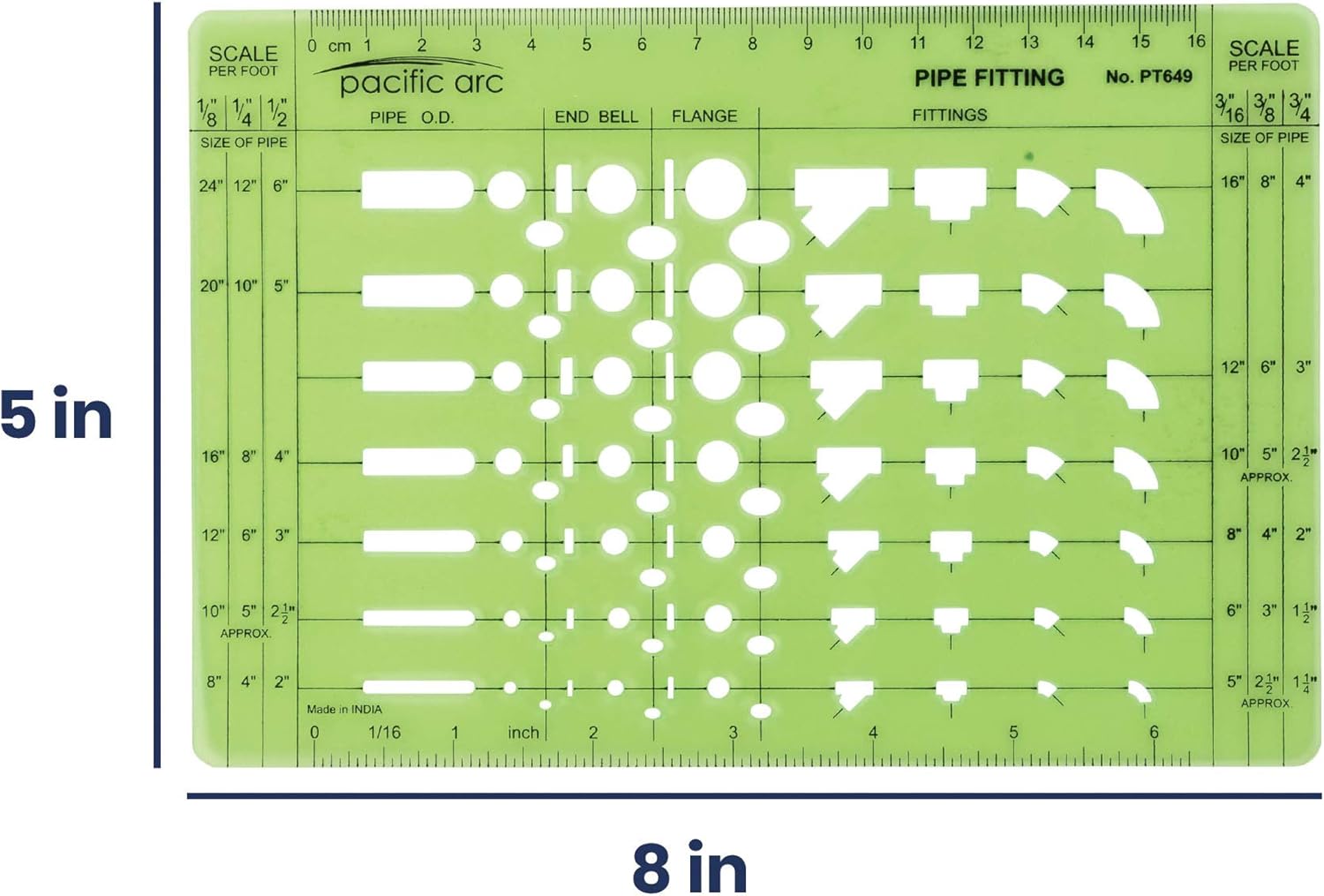

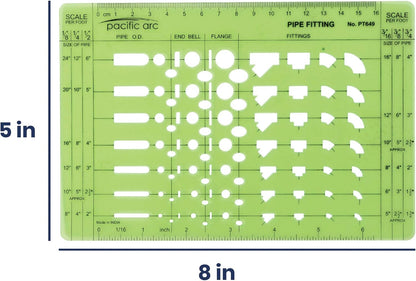

• Product Dimensions : 8"L x 5.5"W
• Item Weight : 0.03 Kilograms
• Set Name : Pipe Fitting
• Manufacturer : Pacific Arc
• UPC : 038236062233
• Size : Pipe Fitting

About this item

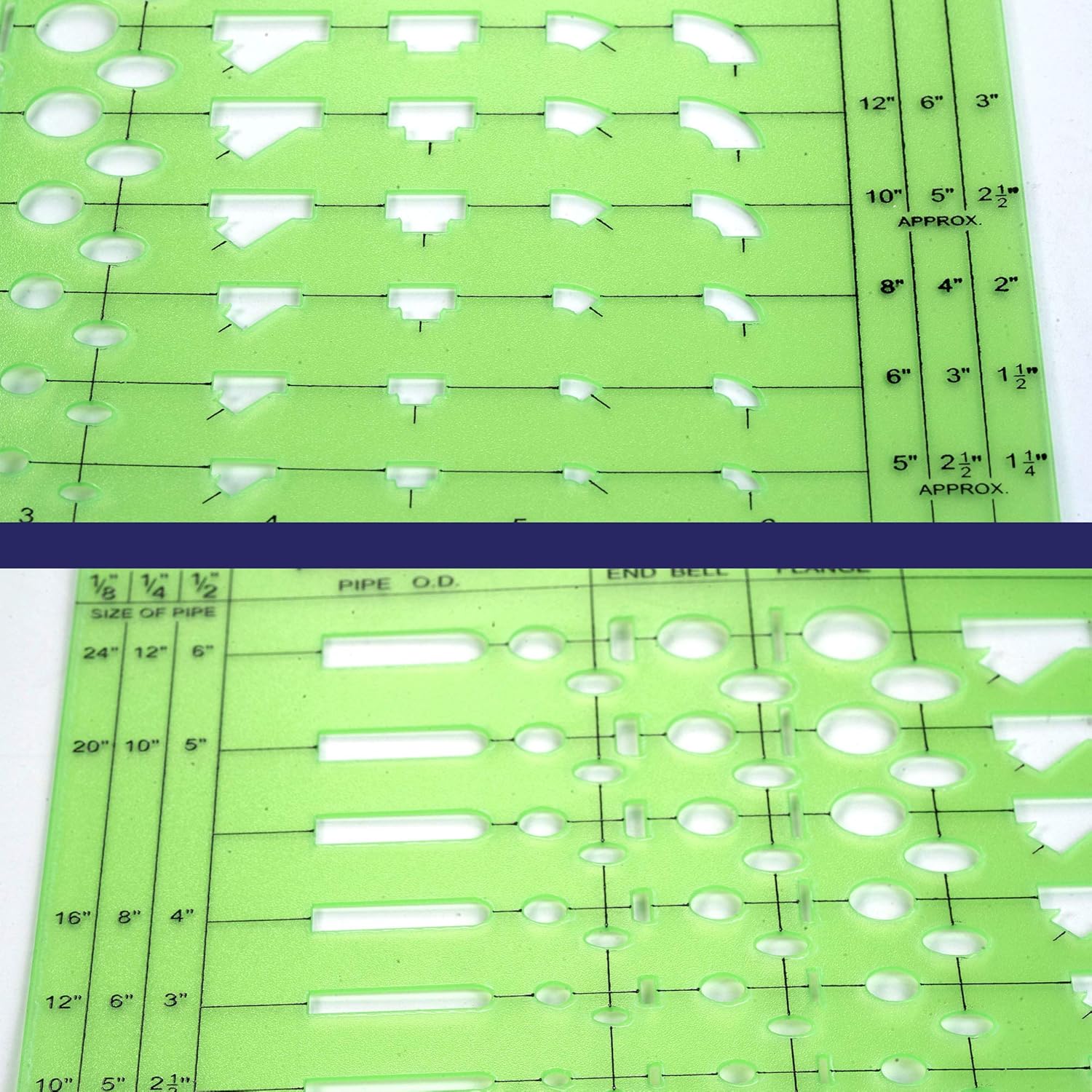

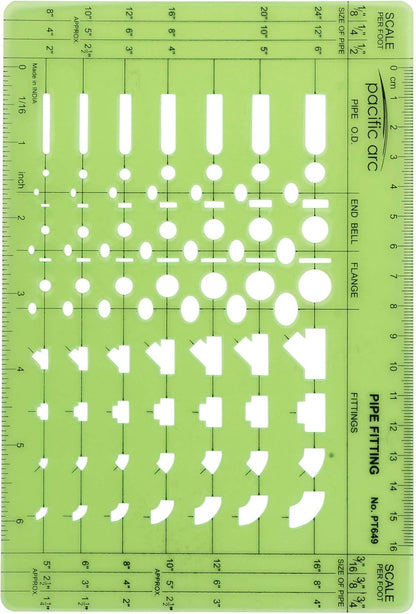

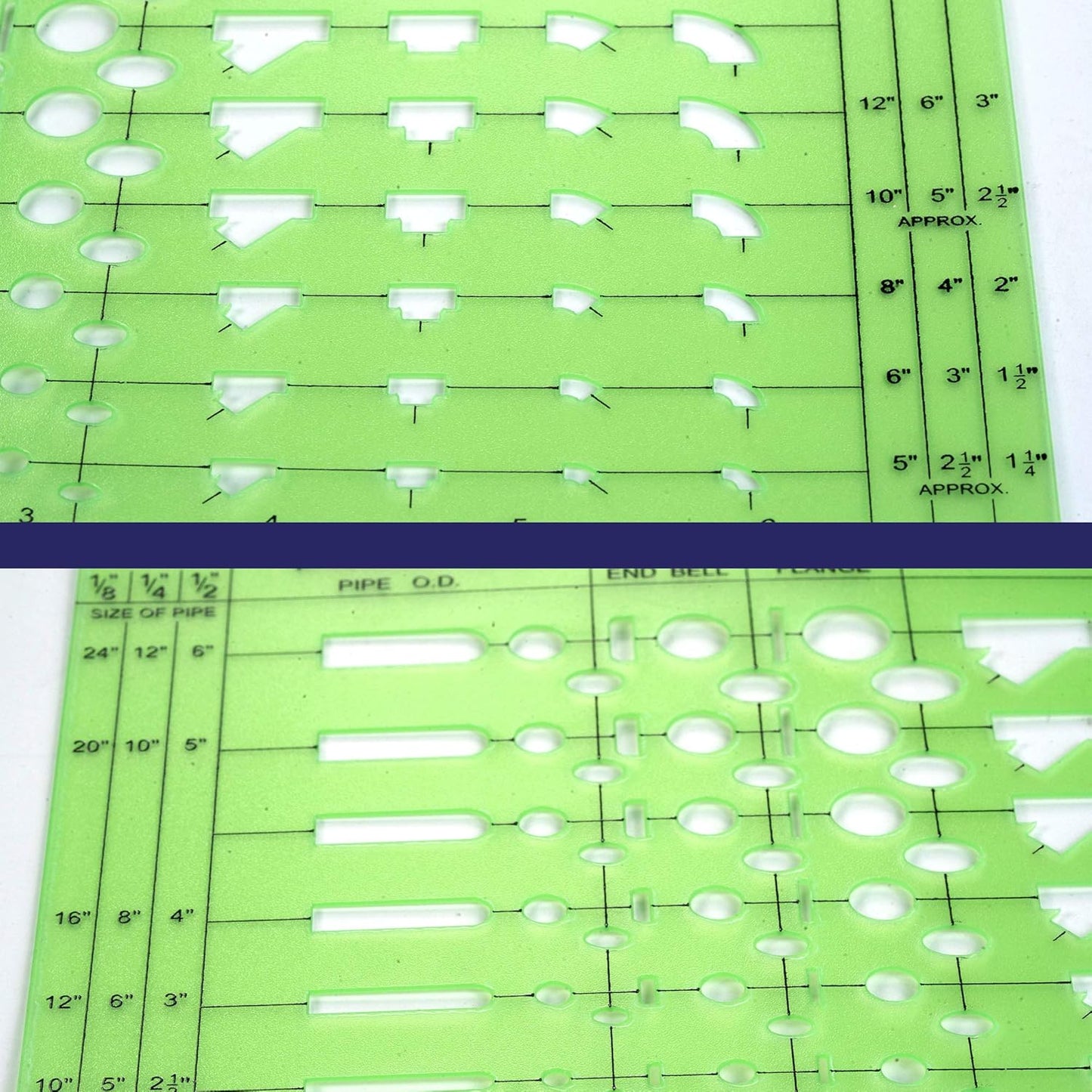

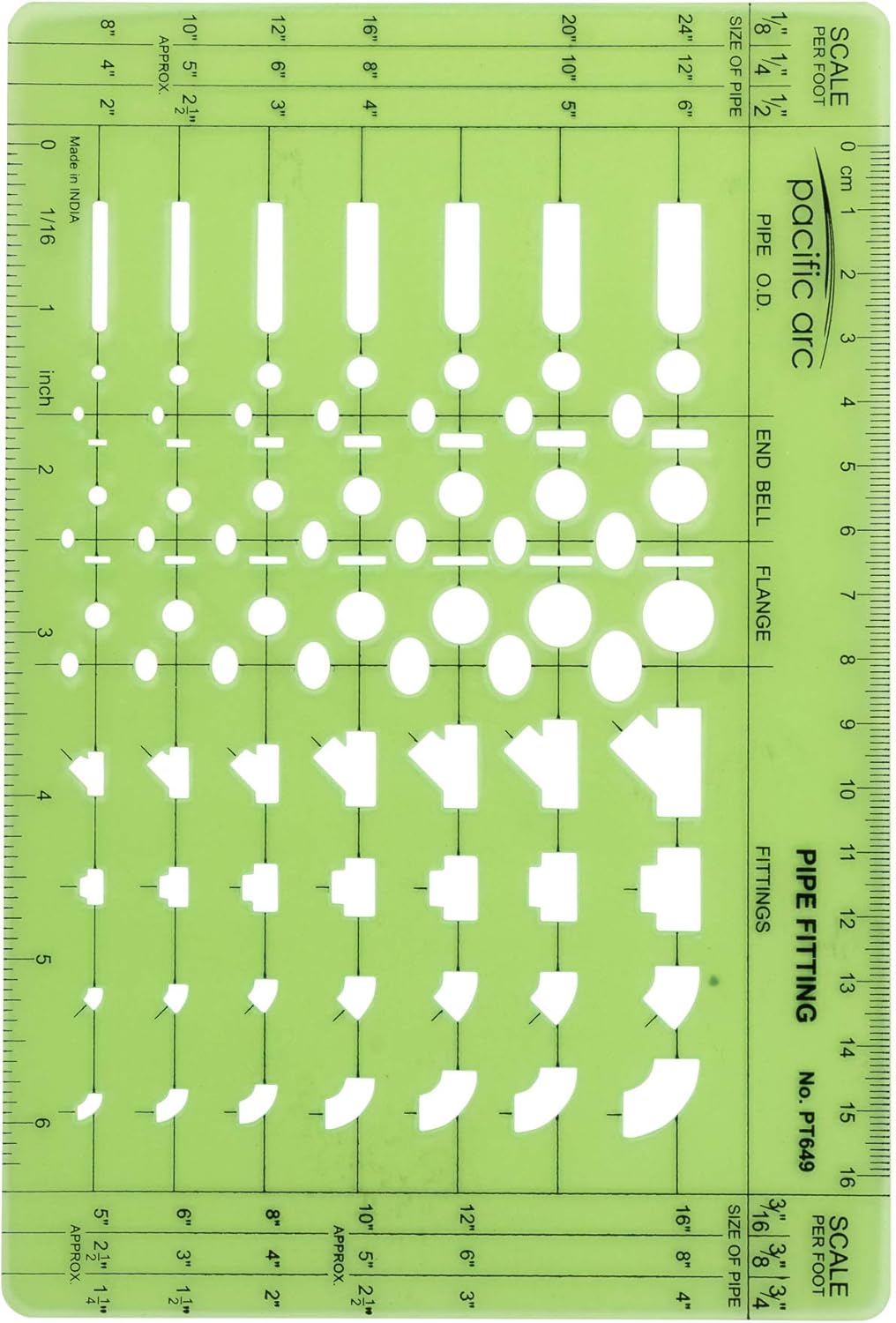

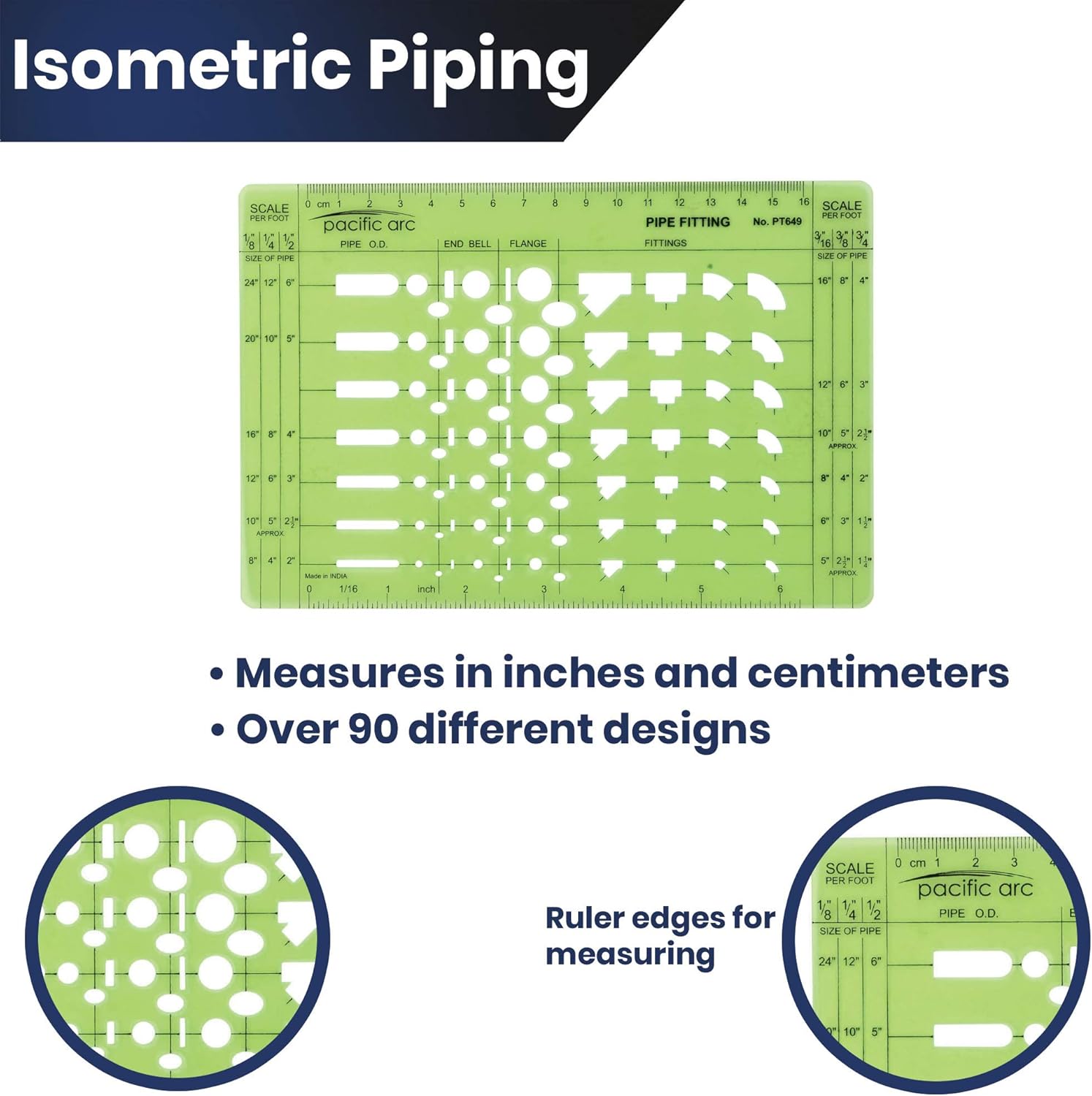

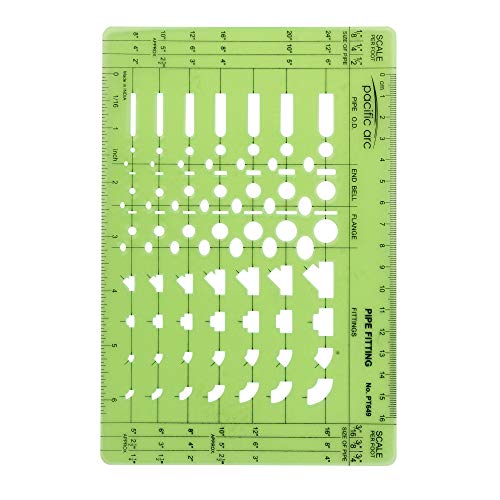

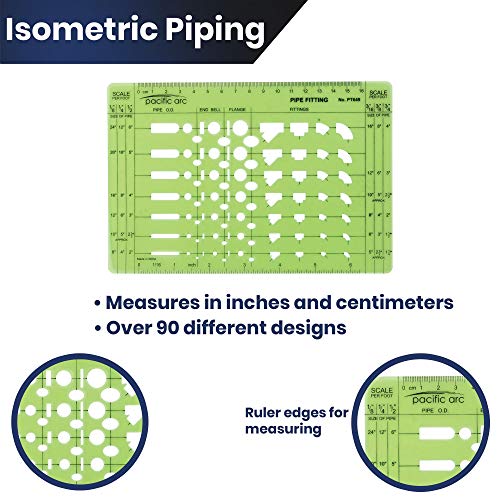

• COMPREHENSIVE TEMPLATE - This template contains all the symbols for pipe, end bell, flange, and fittings in 7 different sizes. It comes equipped with 6 inch and 16 centimeter rulers and Scale per Foot conversions. Ideal for students, architects, and interior designers.

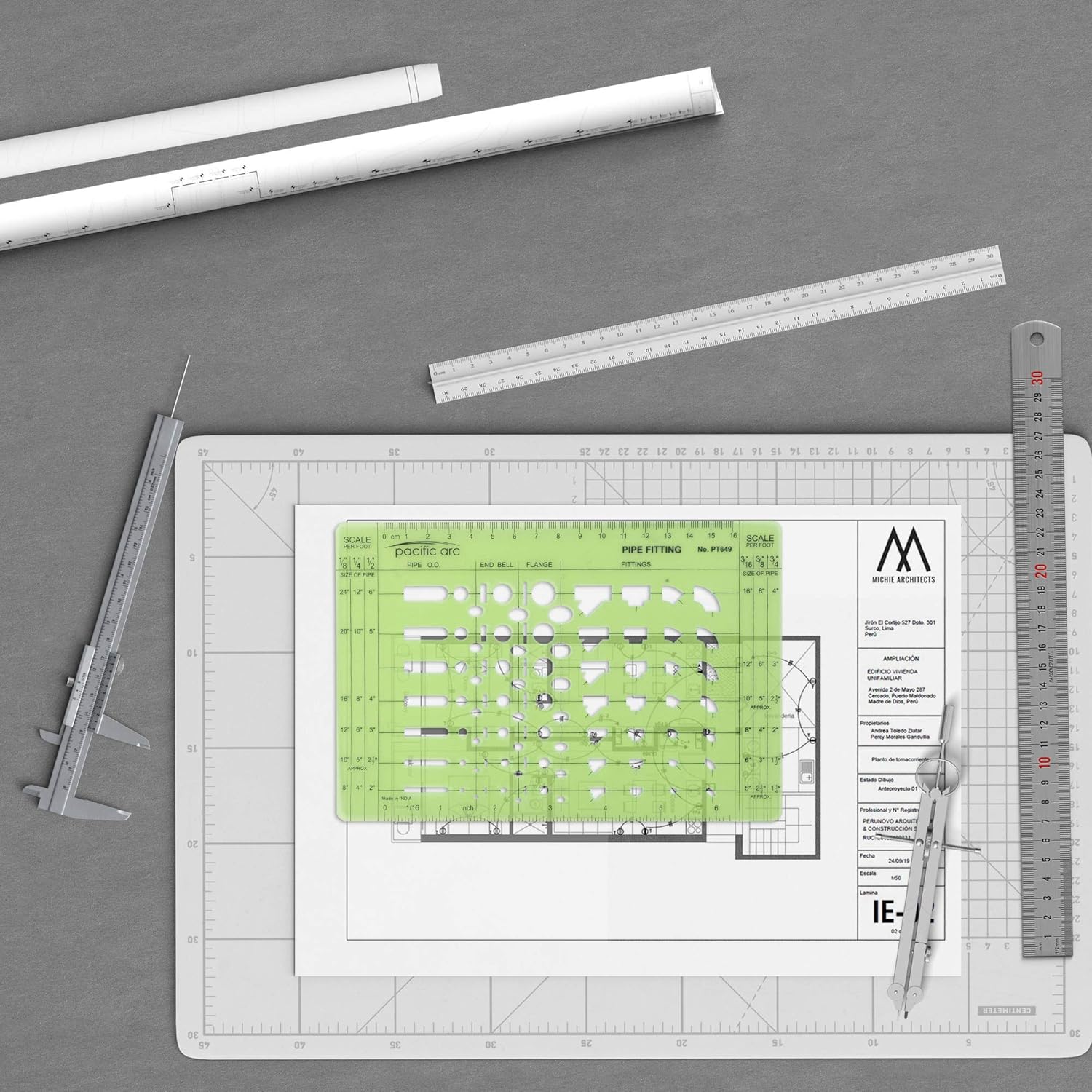

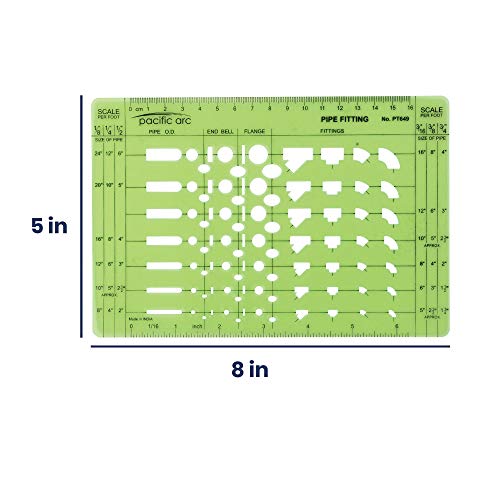

• COMPACT DESIGN - Measuring 8 Inches by 5.5 Inches, This compact design is perfect for drawing designs on the go. Able to fit in any work bag, never be without this template. Made in correct relative size for photographic reproduction.

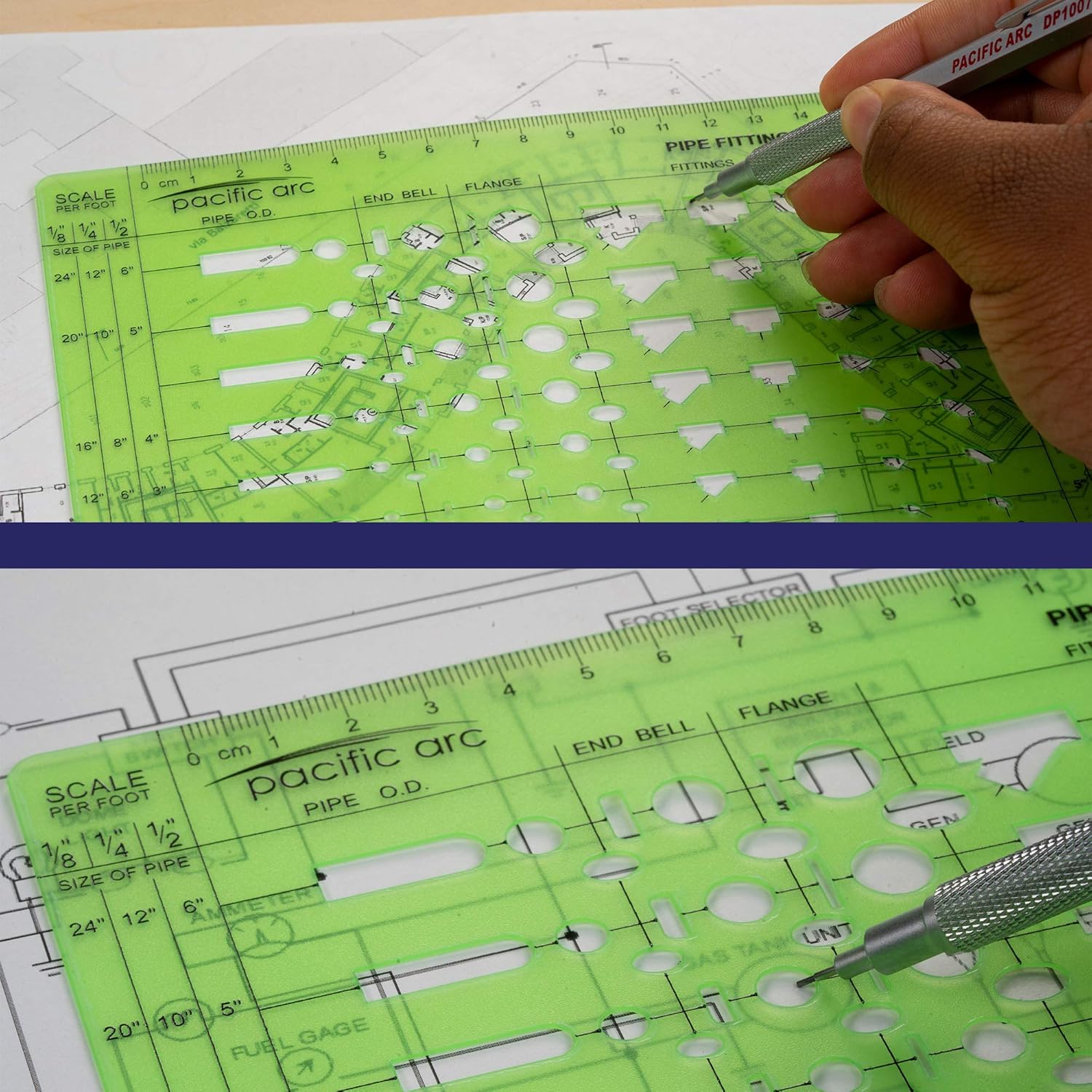

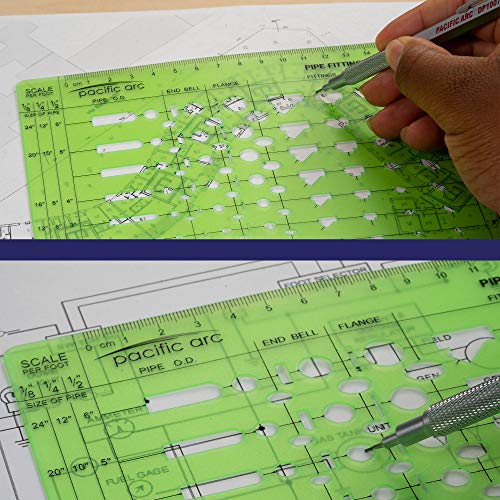

• MADE OF HIGH QUALITY PLASTIC - The translucent see through green plastic makes it easy to create your exact shape without drawing in the wrong place. It's convenient size makes it the perfect travel template for any professional or student. works on many surfaces including paper, vellum, fabric, canvas, wood, and mylar.
• THE PERFECT GIFT - Gift this shape stencil to the artist in your life. Give them a practical, memorable gift that will further their creativity to the next level.
